PCB Compare는 PCB, Gerber, ODB++ etc
Compare and analyze various ECAD designs to accurately detect
differences in geometry (graphic information) and attributes
(attribute information).
Supports bidirectional comparison between PCB, Gerber, and
ODB++.
PCB Compare can compare the entire design of ECAD data as well as
the layers that the user wants to select.
It efficiently supports various design verification methods,
such as intensively analyzing differences between specific layers or
checking changes to the entire design at once.
PCB Compare analyzes graphic information between ECAD designs based
on images.
It is designed to visually compare shape differences between
layers and intuitively check design changes, allowing for quick and
clear design verification.
PCB Compare precisely compares the attribute information of various objects that make up the design, such as parts, VIA, and NET, to identify differences.

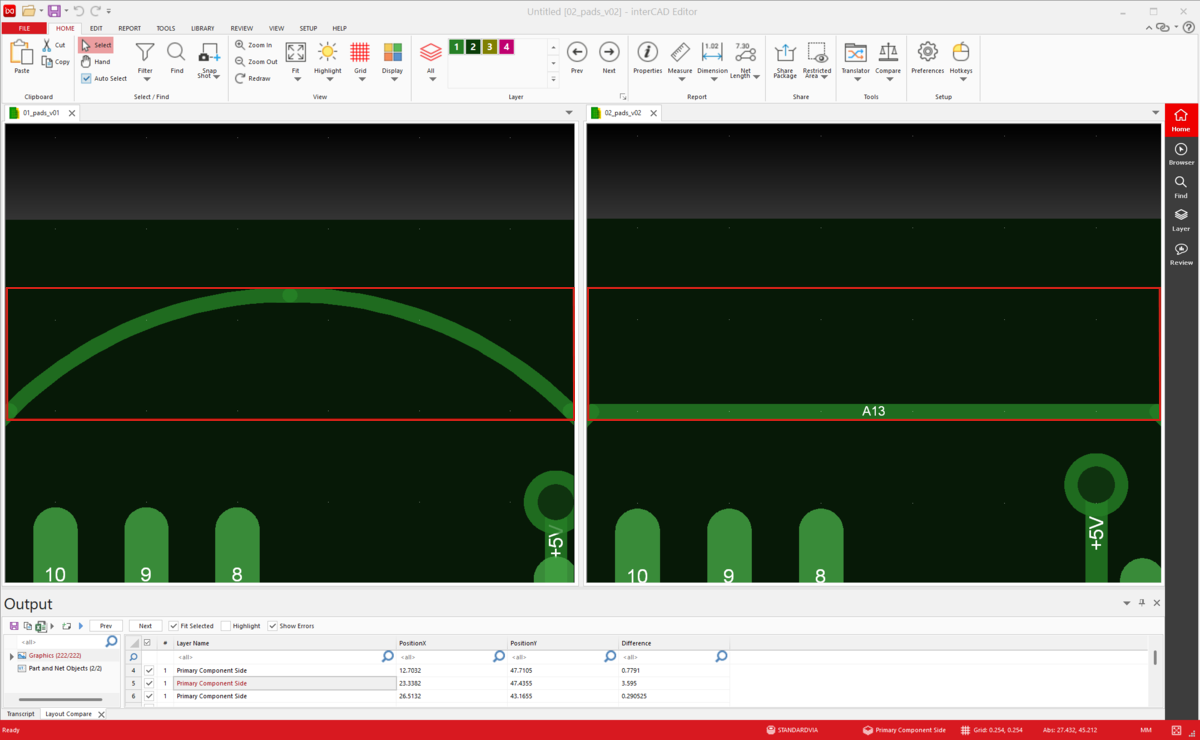

Detected differences are visually highlighted on the screen through
highlighting.
PCB Compare automatically displays where differences occur,
what layers are involved, how many changes were made, etc., to help
users quickly identify them.
The analyzed design differences can be exported in Excel format and used for various purposes such as creating work instructions, creating review documents, and managing design change history.
PCB Compare supports various ECAD design formats including.
You can accurately review the revision history by checking the changed traces, pads, vias, layer configurations, etc. at a glance.
By comparing the final design with the Gerber or design files provided by the customer, mistakes or omissions can be detected before production.
Automatically compares design changes at the final stage before product release, ensuring a stable release.
By comparing the structural or pattern differences between PCBs with similar functions, you can reuse them without design errors or branch product versions.
Familiar environment, powerful performance, and one-click start.
